Fixed Appliances, MARPE Appliances (Airway)

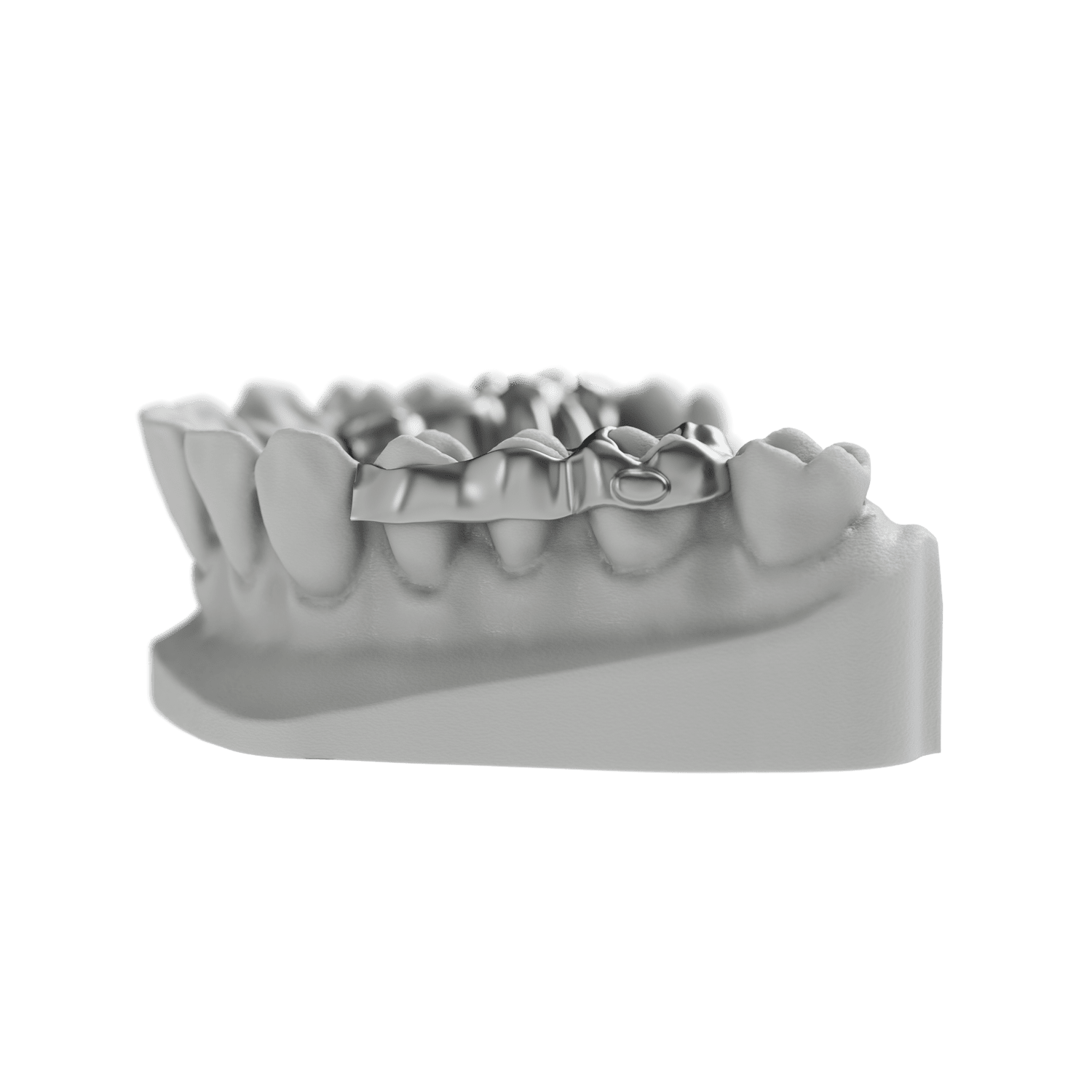

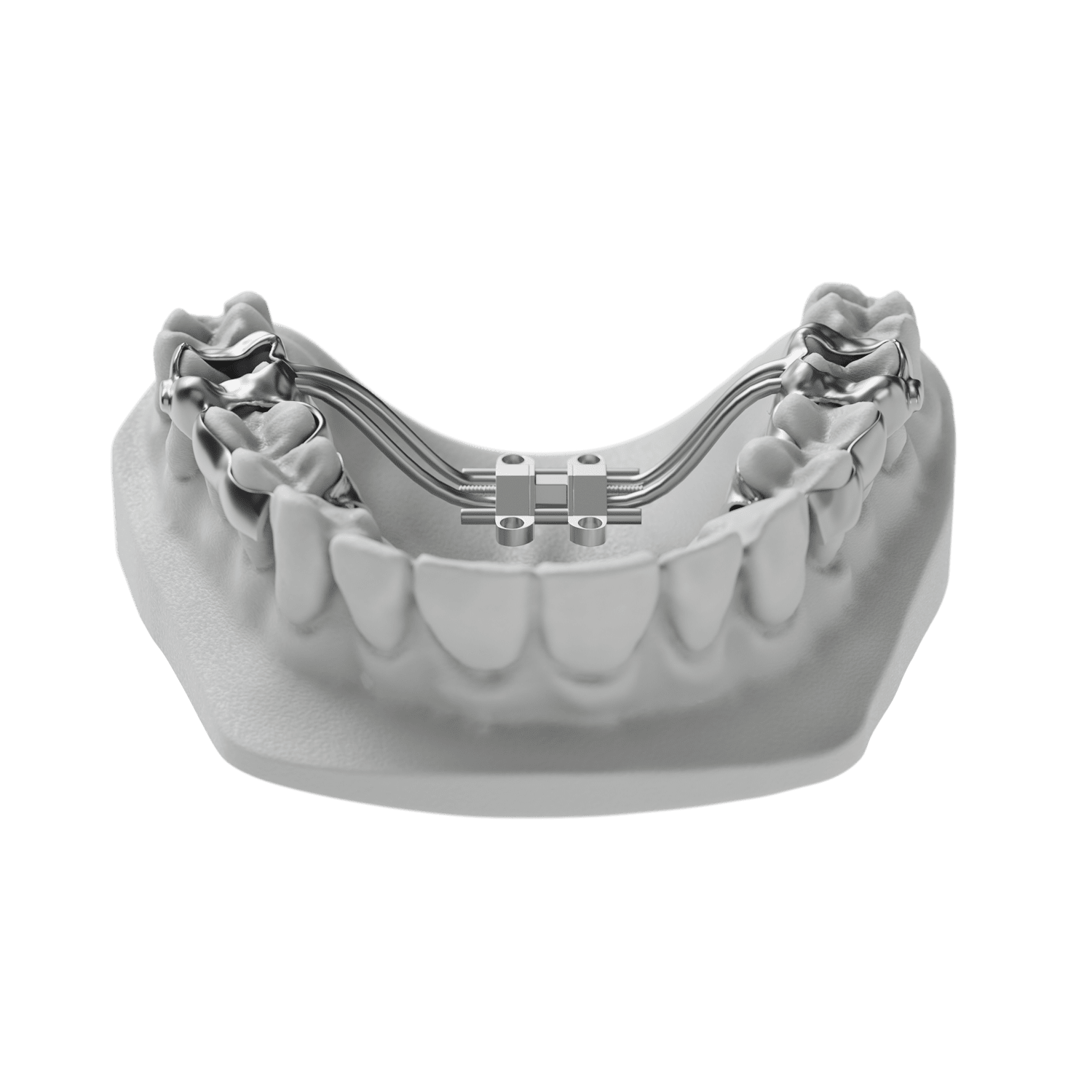

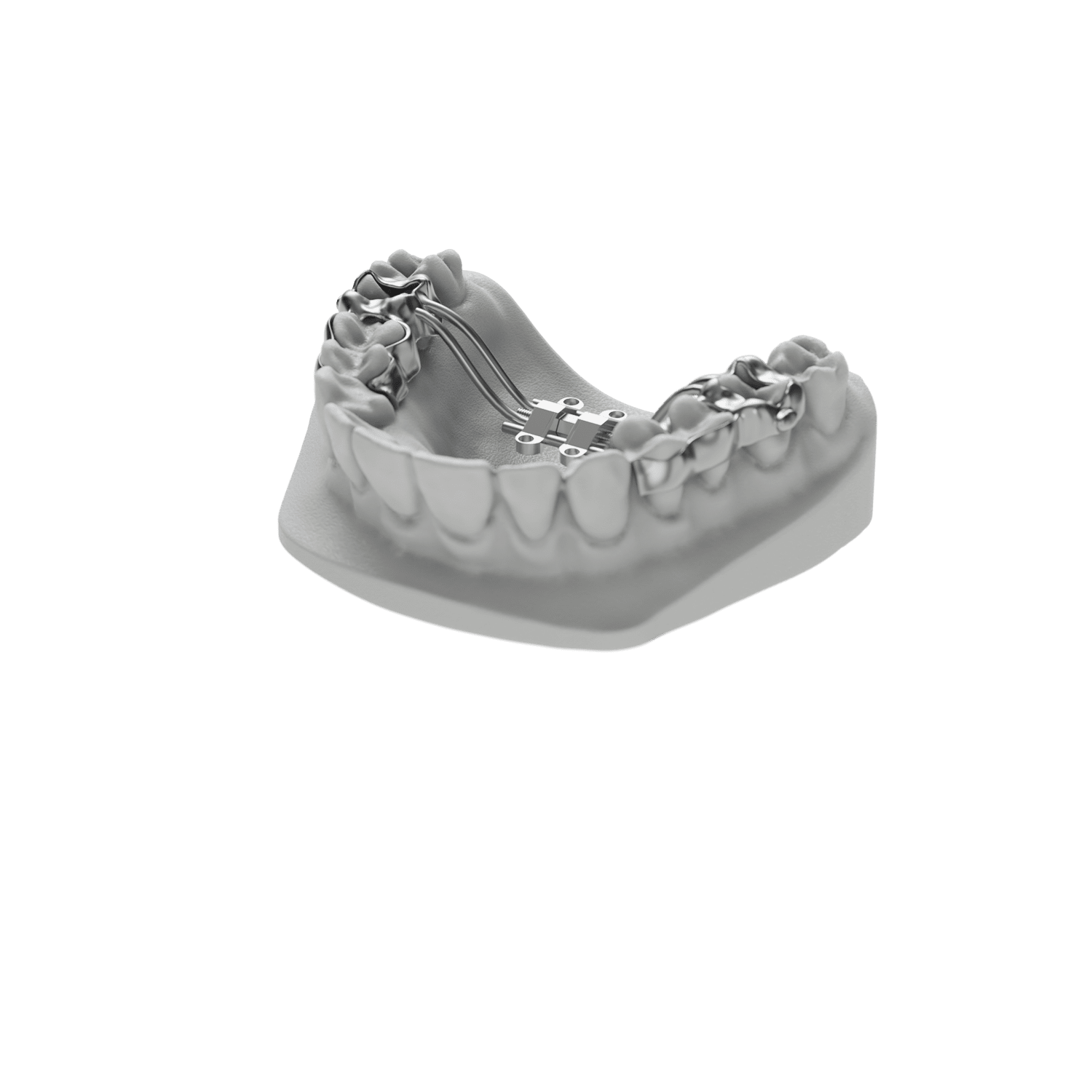

MSE Tad Expander

The MSE Tad Expander is an advanced orthodontic appliance that represents a variation of the Microimplant Assisted Rapid Palatal Expander (MARPE), developed by Dr. Won Moon. This device is specifically designed to achieve non-surgical expansion in adult patients, providing a less invasive option for correcting dental arch constriction. The MSE features expansion screws available in 8mm, 10mm, or 12mm stainless steel, allowing for tailored adjustments to meet individual patient needs. For added stability and effectiveness, the MSE employs four titanium alloy Temporary Anchorage Devices (TADs) that are either 11mm or 13mm in length, providing robust anchorage during the expansion process. A specialized wrench is included for easy activation of the expansion screws, facilitating gradual and controlled palatal widening. This innovative design not only enhances patient comfort but also optimizes treatment outcomes, making the MSE Tad Expander an excellent choice for orthodontists looking to achieve significant palatal expansion without the need for surgical intervention.
Order Now

Additional Options, Materials & Treatment Information

Additional Options

  • AO .022 Slot w/ Hook
  • AO Headgear and .022 Slot with Hook
  • AO MBT w/Hook
  • AO Double Slot w/ Hook

Materials

  • MSE screw
  • TADs (upon request) (contain 12% Nickel)
  • 3D printed metal: Chromium Cobalt

Treatment & Care

  • 6 TURNS = 0.8mm (1 revolution)
  • 12mm screw = Max. 90 turns
  • 10mm screw = Max. 75 turns
  • 8mm screw = Max. 60 turns
  • Early teens – 6X / week (0.80mm / week)
  • Late teens – 2X / day (0.27mm / day)
  • Early to Mid-20’s – 4~6X / day (0.53~0.80mm / day)
  • Older – Min.4~6X / day
  • After Diastema – 2X / day (0.27mm / day)

This appliance should be cleaned every day with toothpaste and a soft toothbrush, morning and night. Encourage the patient to give sufficient time to clean thoroughly around the device, gums, teeth, and bands to maintain proper hygiene and prevent inflammation. Three minutes is recommended.

ODL retainer PATTERN

More About MSE Tad Expander

Also Known As:
MSE appliance, TAD-based expander
Who Made Me:

The Maxillary Skeletal Expander was developed by Dr. Won Moon in the early 2000s as a non-surgical option for skeletal expansion using temporary anchorage devices (TADs). The MSE provides more significant skeletal changes compared to traditional RPEs, making it suitable for adults and patients with severe maxillary constriction. This appliance has revolutionized the field of non-surgical palatal expansion.

Contact For More Options
ODL retainer PATTERN

Customized Uniquely for You

We offer a plethora of customization options to ensure your appliance is expertly tailored to your preferences. With our array of automated machinery and highly skilled craftsmen, you can expect a consistent, high-quality product, every time.

Contact For More Options

The Dental is in the Details

We’re driven by hard-work and a relentless passion for dental excellence. It’s simple. ODL’s highly skilled lab technicians utilize the finest materials available to achieve ideal results for you and your patients. We stand by our craftsmanship and strive to exceed your expectations with every appliance.

Our Promise
ODL-dental-in-the-details-process

Revolutionize the way you serve your patients with the MSE Tad Expander

  • Traditional or Laser sintered bands
  • Activation wrench provided
  • TADs provided upon Doctor request
