Fixed Appliances, Fixed Lingual Retainers

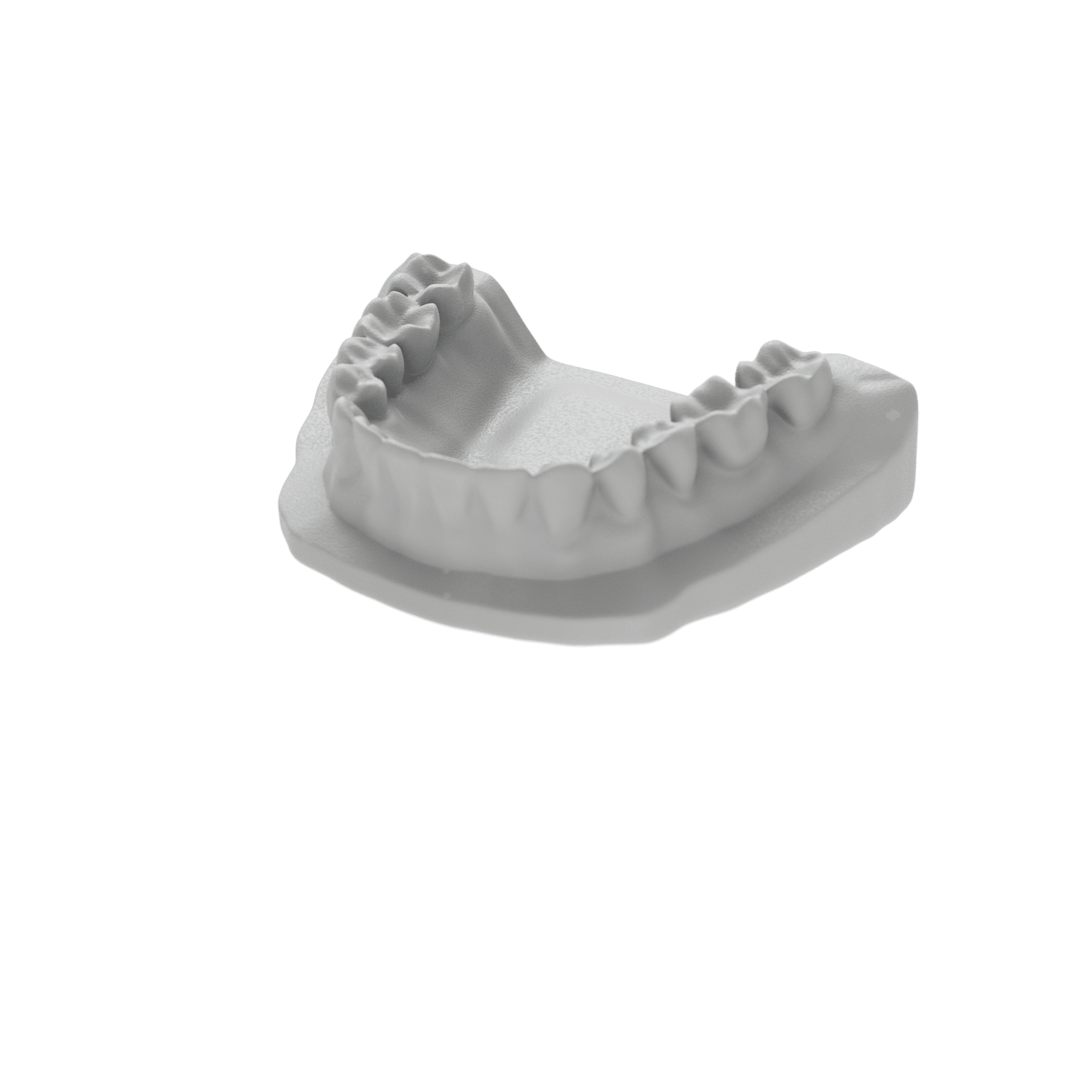

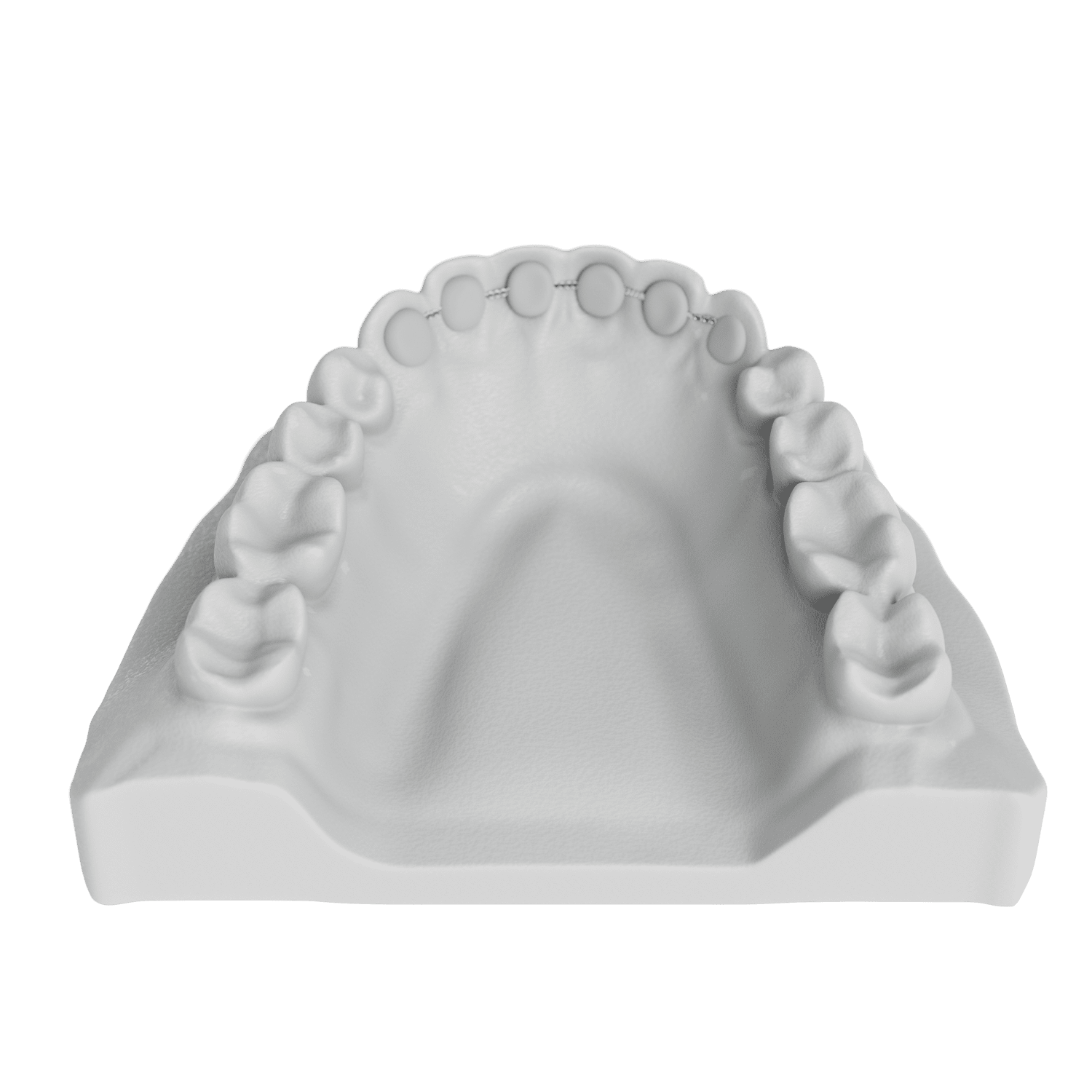

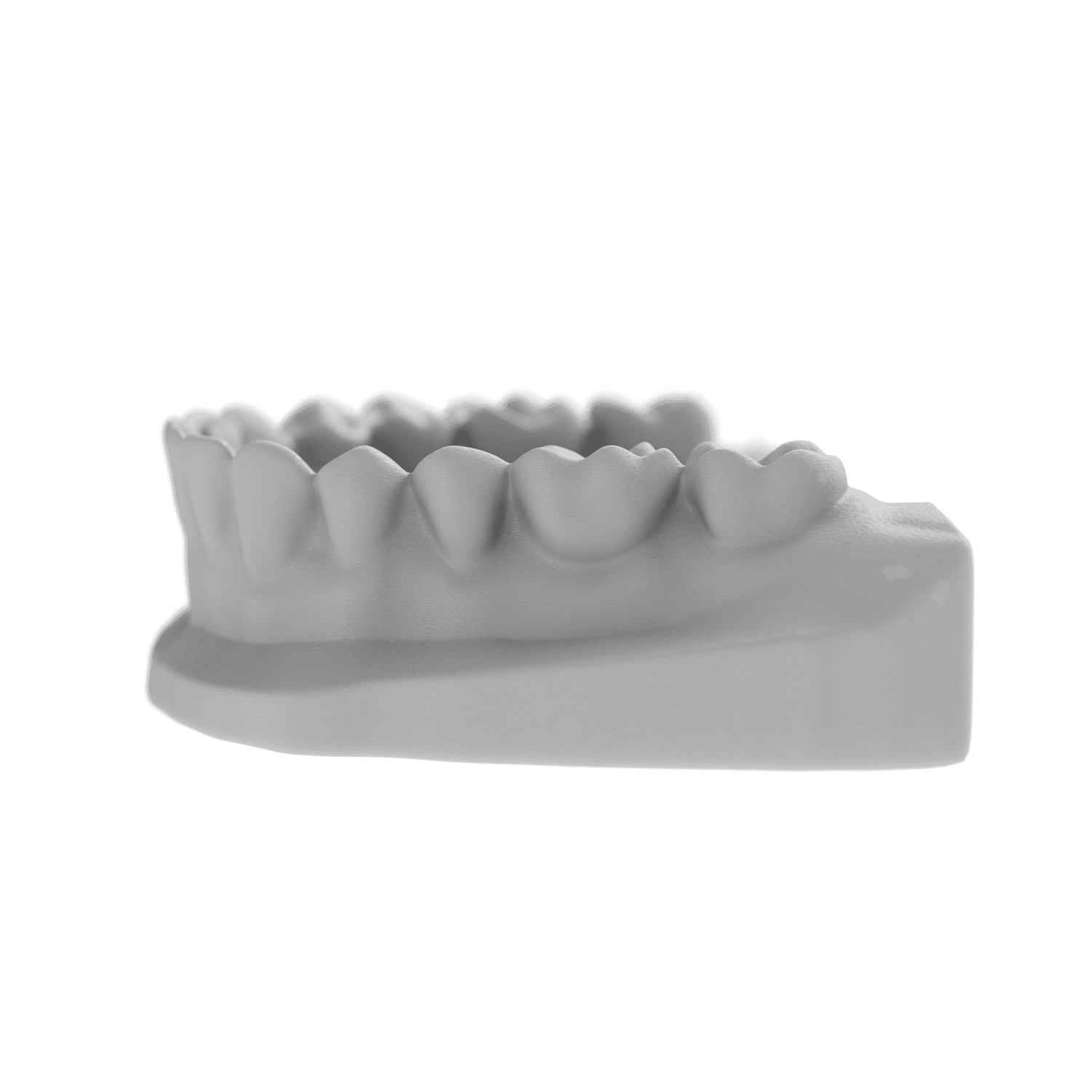

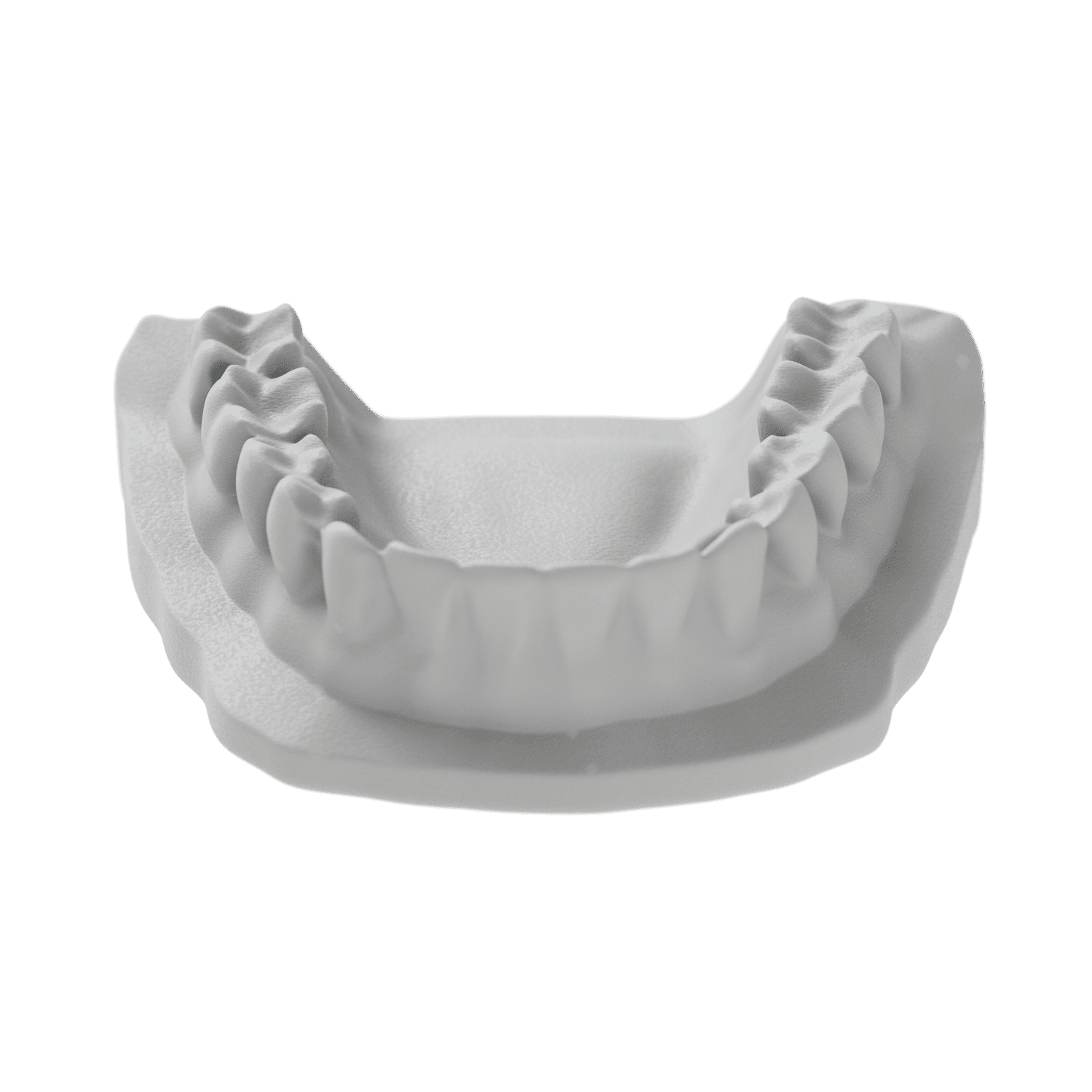

Lingual Bonded Retainer w Custom Pads and Transfer Tray

The Lingual Bonded Retainer with Custom Pads and Transfer Tray is a specialized orthodontic appliance designed to provide long-term stabilization of the anterior teeth following orthodontic treatment. It is available in a variety of wire options, including .0175 braided twist wire, titanium rectangular wire, or braided chain, allowing for customization based on patient needs. The wire is meticulously positioned on the upper third of the anterior teeth, with composite pads added to create a custom base that enhances retention. This appliance is equipped with a transfer tray for precise fitment and ease of installation, ensuring a comfortable and secure fit that helps maintain the alignment achieved during orthodontic therapy.
Order Now

Additional Options, Materials & Treatment Information

Additional Options

  • Can be fabricated 2-2 or 3-3
  • Can be fabricated in a scalloped manner for easier flossing

Materials

  • Wire: Reliance Braided, Titanium, or Ormco Respond Wire
  • Plastic Tray: 2mm mouthguard

Treatment & Care

Treatment & Care

In office bonding procedures for Indirect Bonded Lingual Retainers.

Light Cure Adhesive

Step 1 – Optional
Insert the tray on the dental arch to familiarize yourself with the function and fit of the indirect tray. Remove from mouth and clean with acetone. If you opted for a trial fit the pads must be cleaned with acetone to ensure a proper bond.

Step 2
To ensure a good bond between the custom pad and each tooth you will need to etch the lingual of each tooth that will be bonded according to the manufacturers guidelines of the etchant.

Step 3
Rinse each tooth to be bonded thoroughly until each tooth has a chalky appearance.

Step 4
Dry each tooth to be bonded thoroughly. Having a dry field is the most important step in achieving a good bond. Next a thin film of sealant is simultaneously painted on each composite pad and on the lingual surfaces of the teeth.

Step 5
Apply a small amount of light cure adhesive to each custom pad and to the lingual surface of each tooth to be bonded. Applying this small amount of adhesive to both surfaces is done to cover any areas of discrepancy from the impression, model pour-up and/or laboratory fabrication.

Step 6
Seat the indirect trays on the arch to be bonded and apply firm pressure into place.

Step 7
Cure the adhesive of each pad according to the manufacturers guidelines.

Step 8
After curing you may remove trays from mouth. Remove any excess flash with a small burr or scaler.  Flowable composite may be used and cured around the edges of the pads to give a smooth and rounded finish.

ODL retainer PATTERN

More About Lingual Bonded Retainer w Custom Pads and Transfer Tray

Also Known As:
Upper bonded retainer, 2-2 upper lingual retainer
Who Made Me:

Similar to its lower counterpart, the Upper Lingual Retainer with mesh or composite pads was developed to prevent the upper incisors from shifting post-treatment. Introduced as part of bonded retainer technology in the 1980s, it has evolved with better bonding materials and techniques to improve comfort and reduce the risk of detachment over time.

Contact For More Options
ODL retainer PATTERN

Customized Uniquely for You

We offer a plethora of customization options to ensure your appliance is expertly tailored to your preferences. With our array of automated machinery and highly skilled craftsmen, you can expect a consistent, high-quality product, every time.

Contact For More Options

The Dental is in the Details

We’re driven by hard-work and a relentless passion for dental excellence. It’s simple. ODL’s highly skilled lab technicians utilize the finest materials available to achieve ideal results for you and your patients. We stand by our craftsmanship and strive to exceed your expectations with every appliance.

Our Promise
ODL-dental-in-the-details-process

Revolutionize the way you serve your patients with the Lingual Bonded Retainer w Custom Pads and Transfer Tray

  • Variety of wire options
  • Use with a template tray for easy bonding
  • Available straight or scalloped
