Dental Development, Removable Appliances

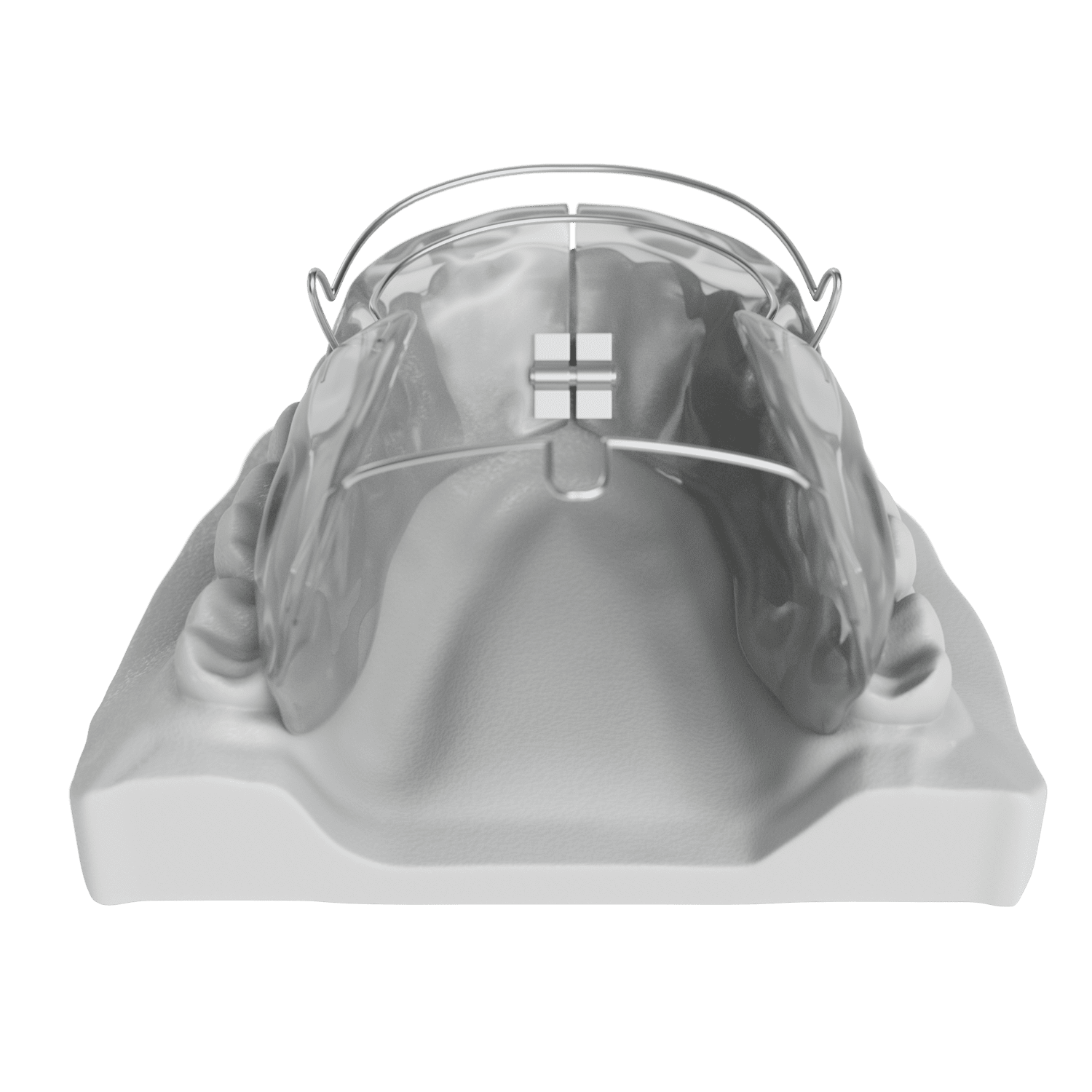

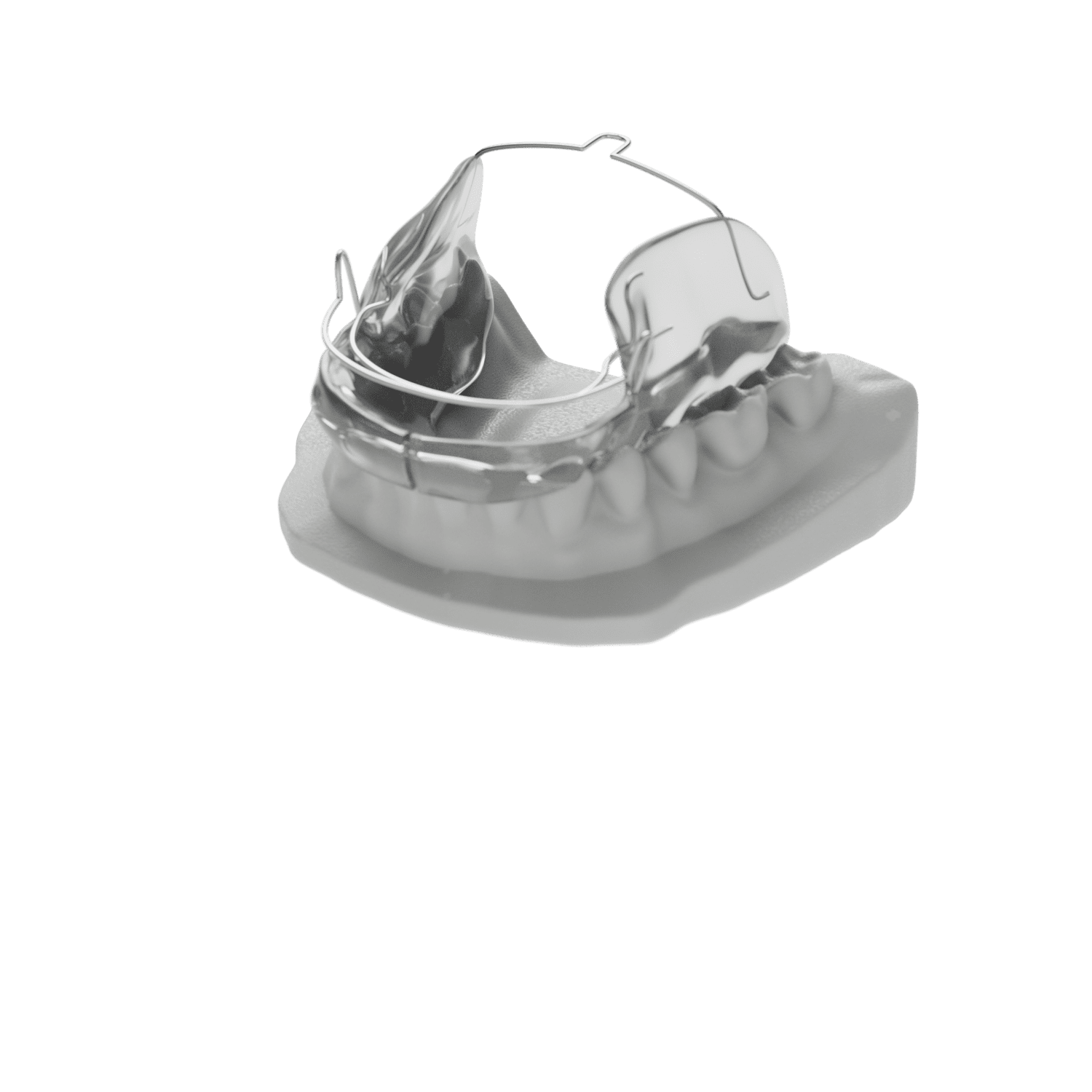

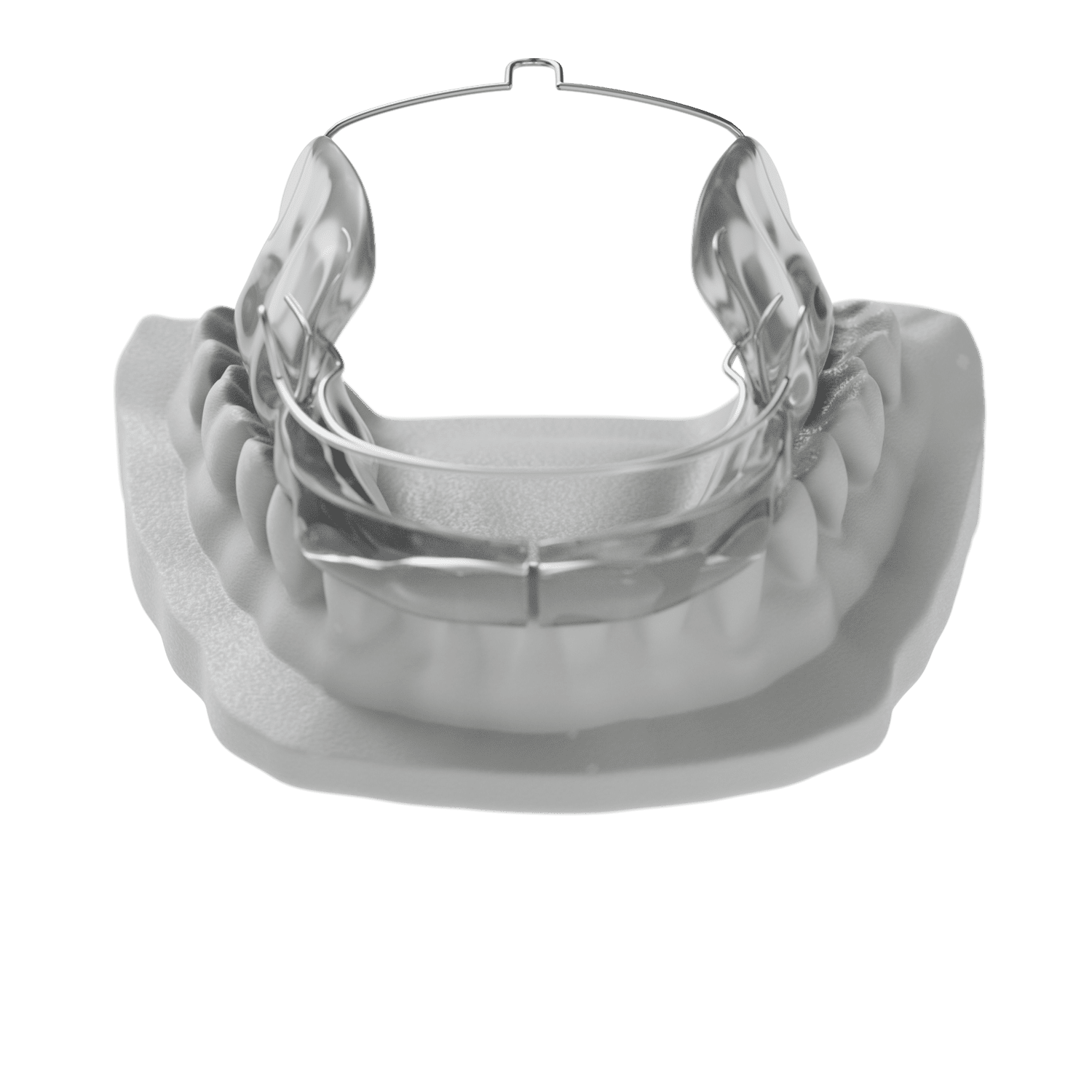

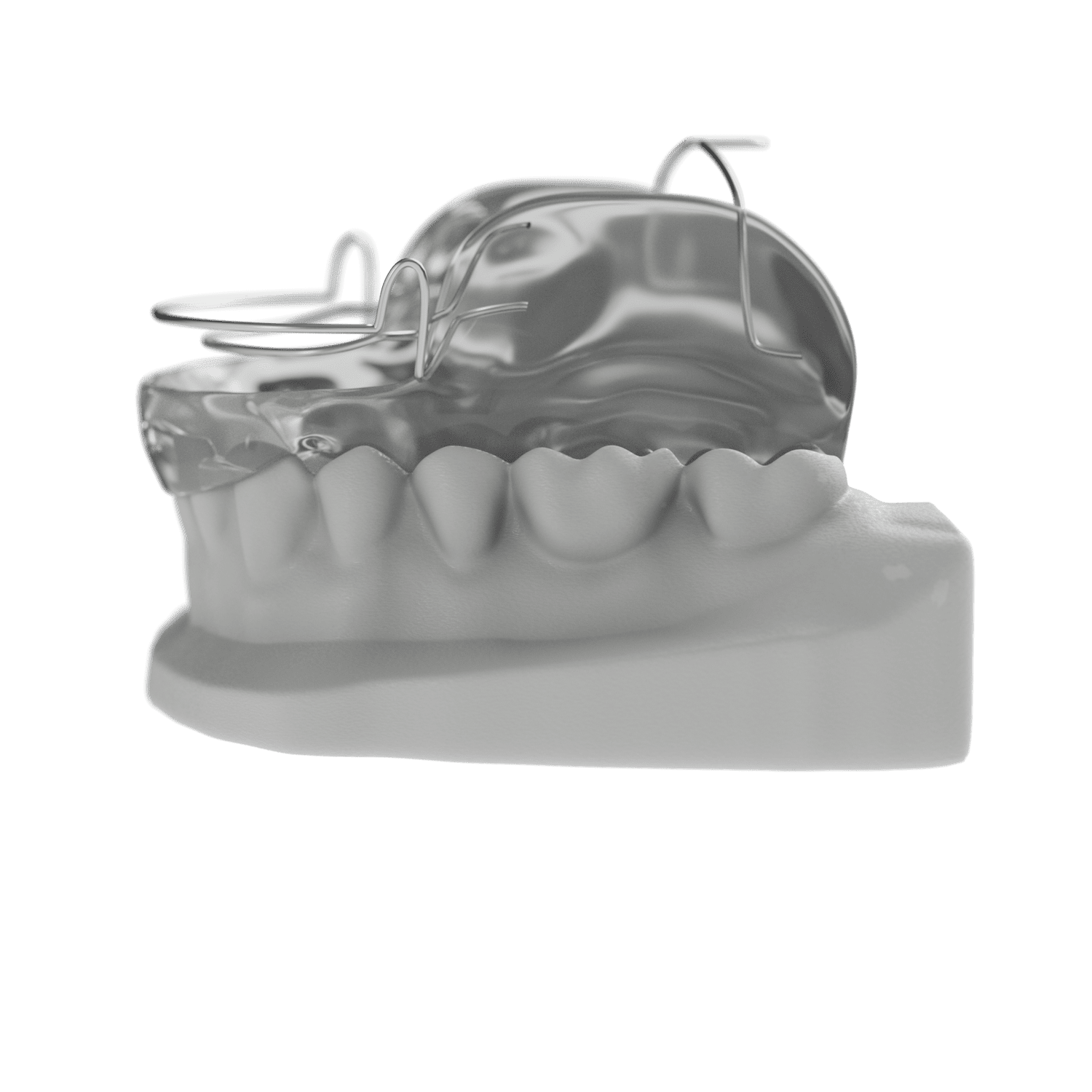

Bionator 1 & 2

The Bionator I is designed for the correction of Class II malocclusions with a deep bite, stimulating alveolar growth and gaining space while correcting an open bite in mixed dentition cases. It features fluted grooves in the posterior section and an anterior bite plate to promote posterior eruption, increasing lower facial height. An anterior cap provides stability as the lower jaw advances into position with the upper. The Bionator II, also used for correcting Class II malocclusions but with an open bite, has an open anterior section to allow incisor growth and a posterior bite plate to prevent vertical eruption. Treatment typically begins between ages 8-11, with a recommended wear time of 21-23 hours a day.
Order Now

Additional Options, Materials & Treatment Information

Materials

  • Wire: American Orthodontics Chromium Cobalt
  • Acrylic: JBC Monomer and Polymer
  • Screw: Leone POP Expansion Screw

Treatment & Care

Ideally, treatment starts should range from 8-11 years old, and recommended wear time is 21-23 hours a day. Treatment results in a change in overjet of one mm per month. You can add an optional expansion screw to stimulate the growth of the posterior teeth.

Patients should clean daily with toothpaste to prevent the buildup of plaque and odor.  Avoid Efferdent and other effervescent solutions, as it may erode components on the appliance. It is recommended to use products like DentaSoak or Retainer Splash.

ODL retainer PATTERN

More About Bionator 1 & 2

Also Known As:
Bionator appliance, Bionator I for bite opening
Who Made Me:

The Bionator was developed by Dr. Wilhelm Balters in Germany in the 1950s to treat Class II malocclusions by encouraging natural jaw growth. The Bionator I specifically is used to open the bite, allowing for better alignment of the teeth and jaw. This appliance has evolved over the years to include variations for both bite opening and closing, making it a versatile tool in functional orthodontics.

Contact For More Options
ODL retainer PATTERN

Customized Uniquely for You

We offer a plethora of customization options to ensure your appliance is expertly tailored to your preferences. With our array of automated machinery and highly skilled craftsmen, you can expect a consistent, high-quality product, every time.

Contact For More Options

The Dental is in the Details

We’re driven by hard-work and a relentless passion for dental excellence. It’s simple. ODL’s highly skilled lab technicians utilize the finest materials available to achieve ideal results for you and your patients. We stand by our craftsmanship and strive to exceed your expectations with every appliance.

Our Promise
ODL-dental-in-the-details-process

Revolutionize the way you serve your patients with the Bionator 1 & 2

  • Corrects Class II Malocclusions
  • Interior Cap for Stability
  • Allows Lower Facial Height

Let's Chat
